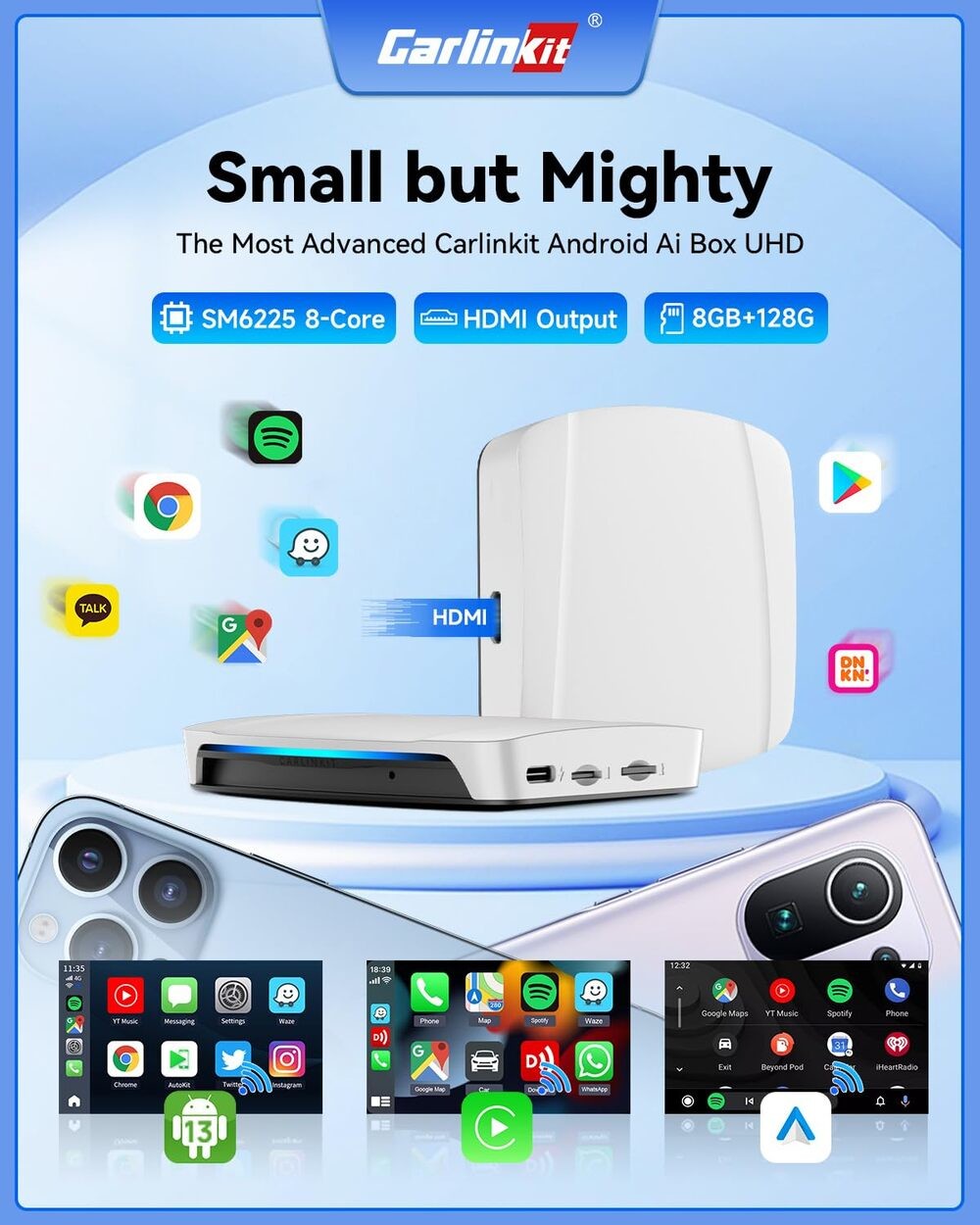

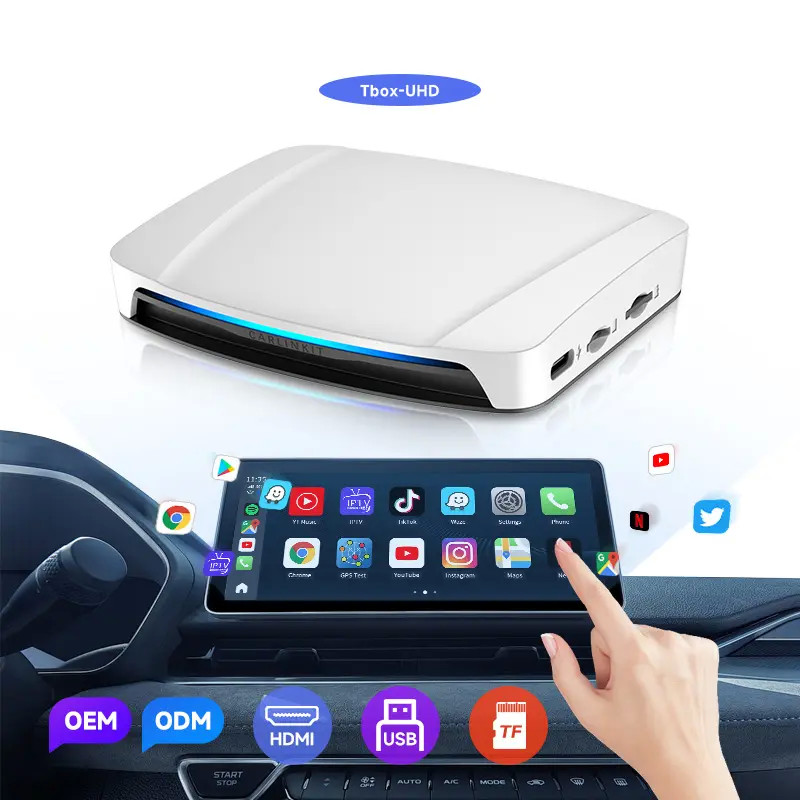

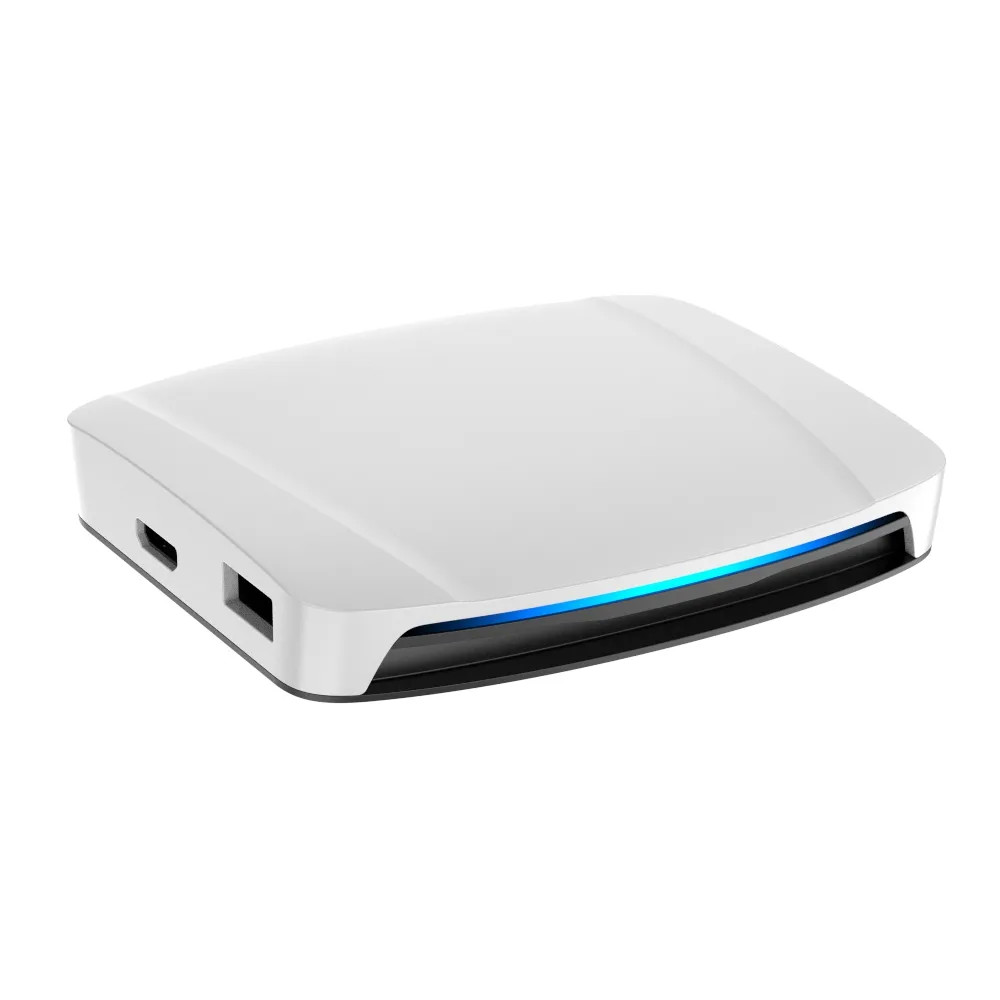

Tbox UHD Android 13 Wireless Adapter CarPlay AI Box 4K HD Video Output Online Video FOTA UHD TVBox SM6225 4Gb

Product Features

Built-in Full Android 13.0 with Wireless Apple CarPlay and Wireless Android Auto
Qualcomm SM6225 Processor with 4GB RAM + 64GB storage (expandable to 512GB via TF card)
4G Cellular support with SIM Card Slot
HDMI connection for HD image output to displays

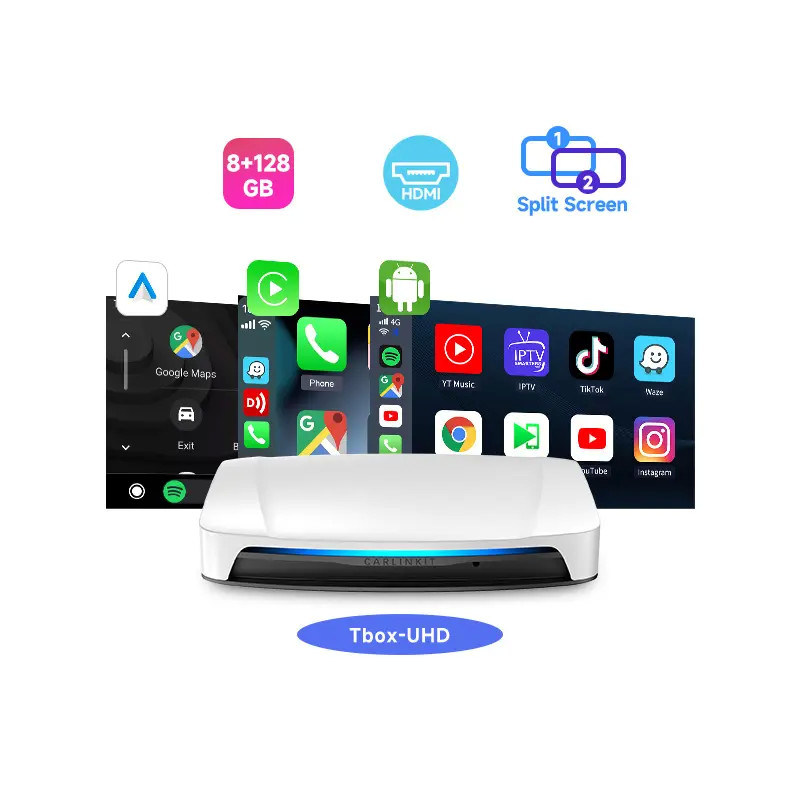

Split-screen display for seamless multitasking
Low power consumption design for energy efficiency
Hands-free operation for safer driving

Product Specifications

Model	CPC200-Tbox-UHD
CPU	Qualcomm SM6225 Quad-core ARM Cortex-A73, Kryo 265 Gold @2.4GHz + Quad-core ARM Cortex-A53, Kryo 265 Silver @1.9GHz (6 nm N6 process)
GPU	Adreno 610
Memory	4GB LPDDR4 RAM + 64GB UFS ROM
Support Extension	512GB
WiFi Module	WCN3980
MFI	MFI 3959
Operator Version	NA (North America)/EAU (Europe, Asia)/JP (Japan)
Communication Standard	LTD-FDD/LTE-TDD/WCDMA/GSM/EDGE
Global Positioning	GPS/GLONASS/BeiDou
Bluetooth	5.0 BR/EDR/BLE
Power Input	5V+/-0.2V 2A
Power Consumption	6W
WiFi Frequency	802.11a/b/g/n/ac, 2.4G+5G
Material	ABS
Colour	White
Wireless CarPlay Compatibility	iPhone 6 and above / iOS 10.0 and above
Wireless Android Auto Compatibility	Android phone with Android 11.0 and above
Compatible Car	Car with factory wired CarPlay/wired Android Auto
Resolution	Adaptive (maintains original protocol resolution)
Language	Multiple global languages including Arabic, Chinese, English, French
Ports	LED Light, Type-C Female Port, TF Card Slot, HDMI port
Included Cables	USB-A to USB-C1, USB-C to USB-C1 (L=300mm), HDMI Adapter*1 (L=170mm)
Product Size	9084.917.1mm (3.543.340.67 inch)
Package Dimensions	11010639mm
Product Weight	0.1034kg
Packing Gross Weight	0.244kg
Packing List	Packing Box1, Product1, Data cable2, HDMI Adapter1, Product Manual1, Ejection Pin1

Conditions of Use

Compatible with car models featuring wired CarPlay or Android Auto
Projection playback: secondary/rear screen supports HDMI input
Wireless CarPlay requires iOS10+ and iPhone6+
Wireless Android Auto requires Android 11.0+

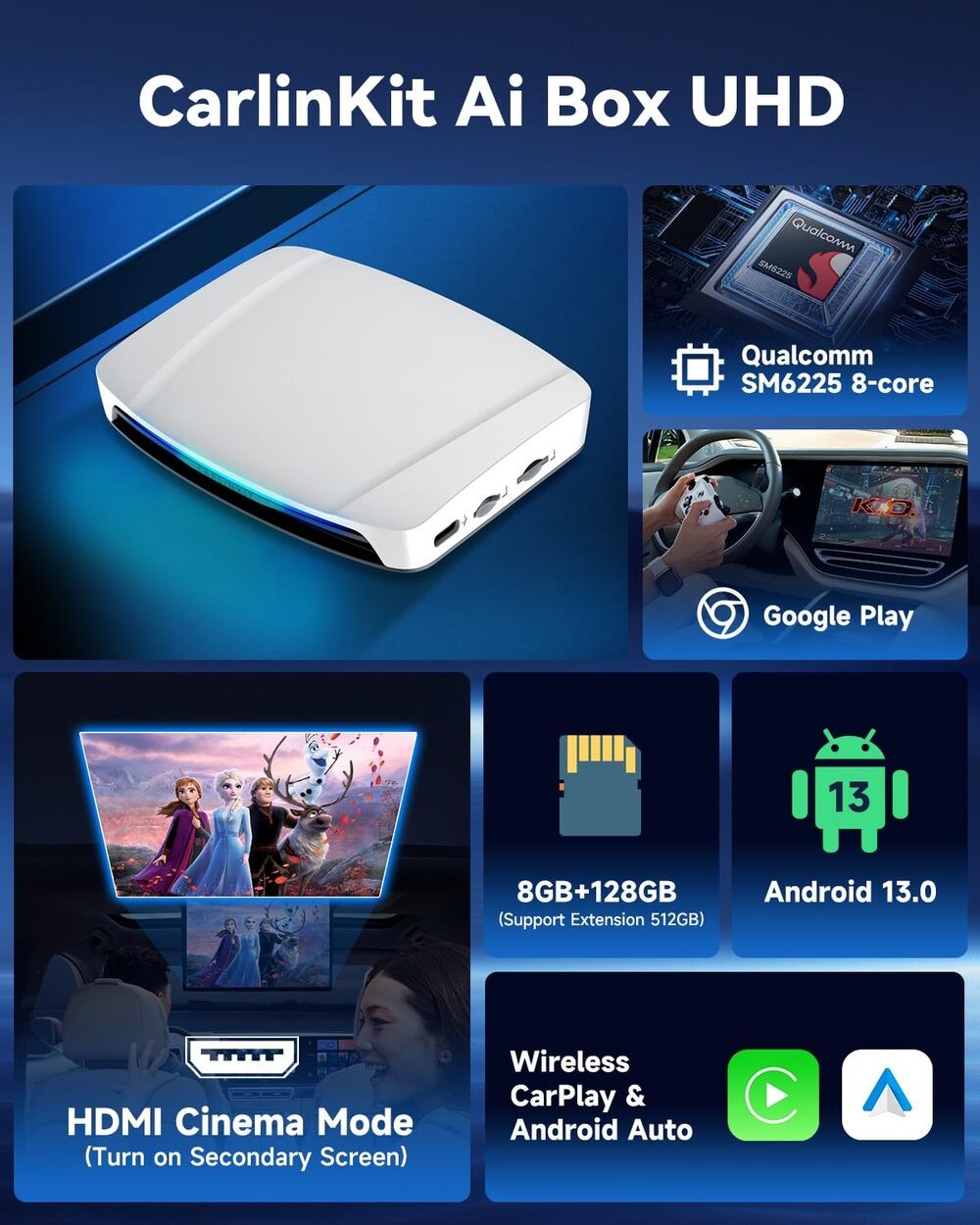

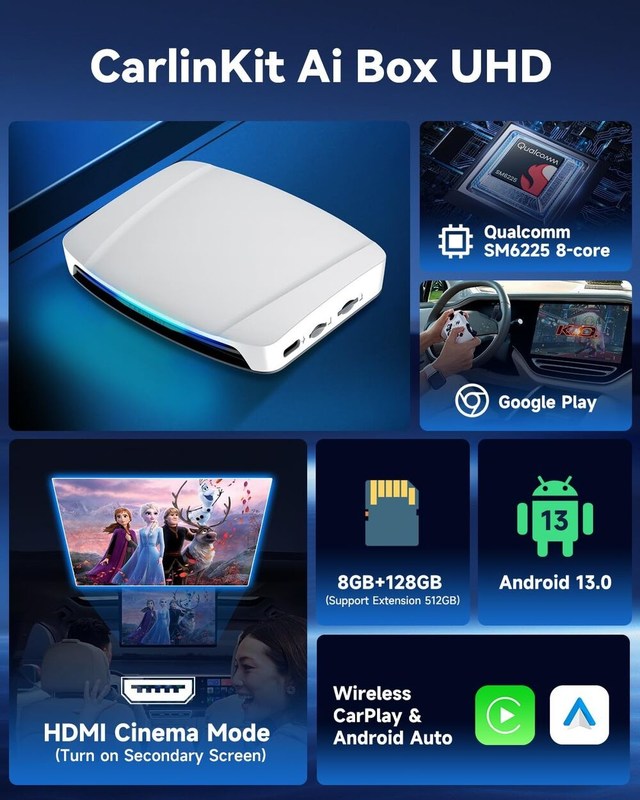

HDMI Cinema Mode

Ensures crisp and clear visuals on secondary screens. Simply connect via HDMI and activate the secondary screen. Designed exclusively for passenger viewing when vehicle is in motion.

Wide Compatibility

Compatible with car models featuring Android system 4.4+
Supports over 600+ car models covering most mainstream brands
iPhone 6 and above models with iOS 10 or later
Android phones running Android 11.0 and above

High-Quality Audio and Video

Minimized delays for smooth audio and video playback
Supports high-resolution audio streaming for superior in-car entertainment
Seamless integration with Apple Music, Spotify, and Pandora

Dual Channel Switching

Effortless transition between Carplay (default) and Android Auto modes
Switch modes via TF card (requires file transfer) or using the pin port
Insert card's pin and hold for approximately 3 seconds to switch modes
Green light indicates Carplay mode

Why Choose Us

Professional: Complete industry chain covering research, production, and sales
High Quality: Famous brand materials, product certifications, and warranty
Delivery on Time: High output capacity with excellent execution (10,000pcs/month)
After-Sales Service: Customer-oriented with prompt feedback and quality guarantees
Continuity: Extended product life cycle with continuous technology upgrades
Standardization: Complete certification and patent documentation with fair pricing
Diversification: Offers OEM, ODM, and sales agent cooperation models

Tag:

Place of Origin:	China
Brand Name:	AutolinKit
Certification:	RoHs/FCC/CE/TELEC/NCC/SRRC
Model Number:	CPC200-TBox UHD(SM6225 64G)

Minimum Order Quantity:	1pcs
Packaging Details:	Gift carton 11010639mm
Delivery Time:	3-5 days
Supply Ability:	10,000 carton per month

CPU:	Qualcomm SM6225 Quad-core	GPU:	Adreno 610
ROM:	4GB LPDDR4 RAM+64GB UFS ROM	WIFI Frequency:	802.11a/b/g/n/ac, 2.4G+5G
Bluetooth Version:	5.0 BR/EDR/BLE	System:	Android 13
Highlight:	Tbox UHD Android 13 CarPlay AI Box , HD Video Output Tbox UHD , Wireless Android Auto TBoxSM6225 4Gb Adapter
