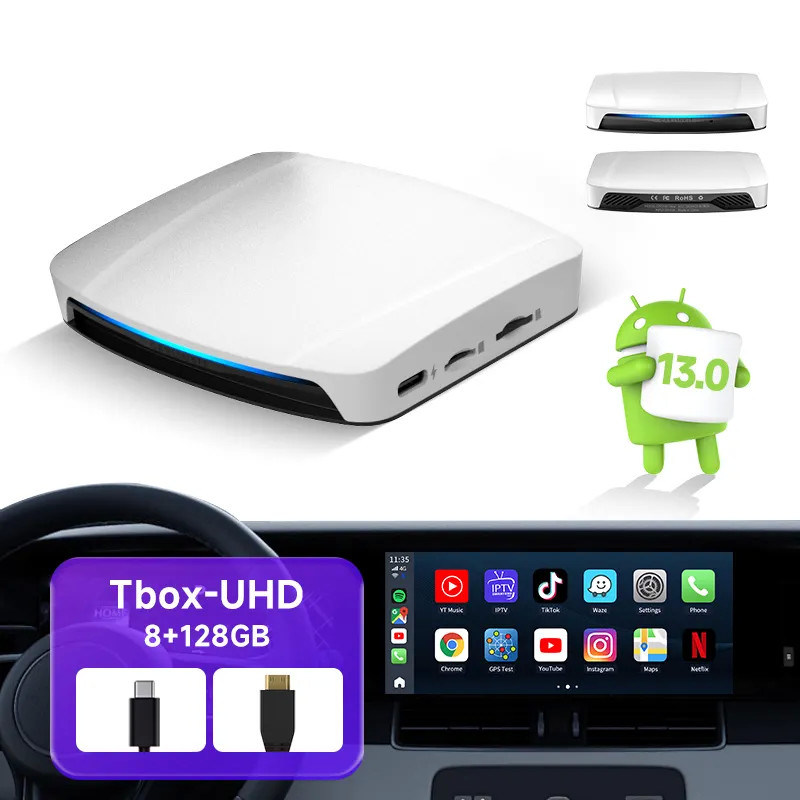

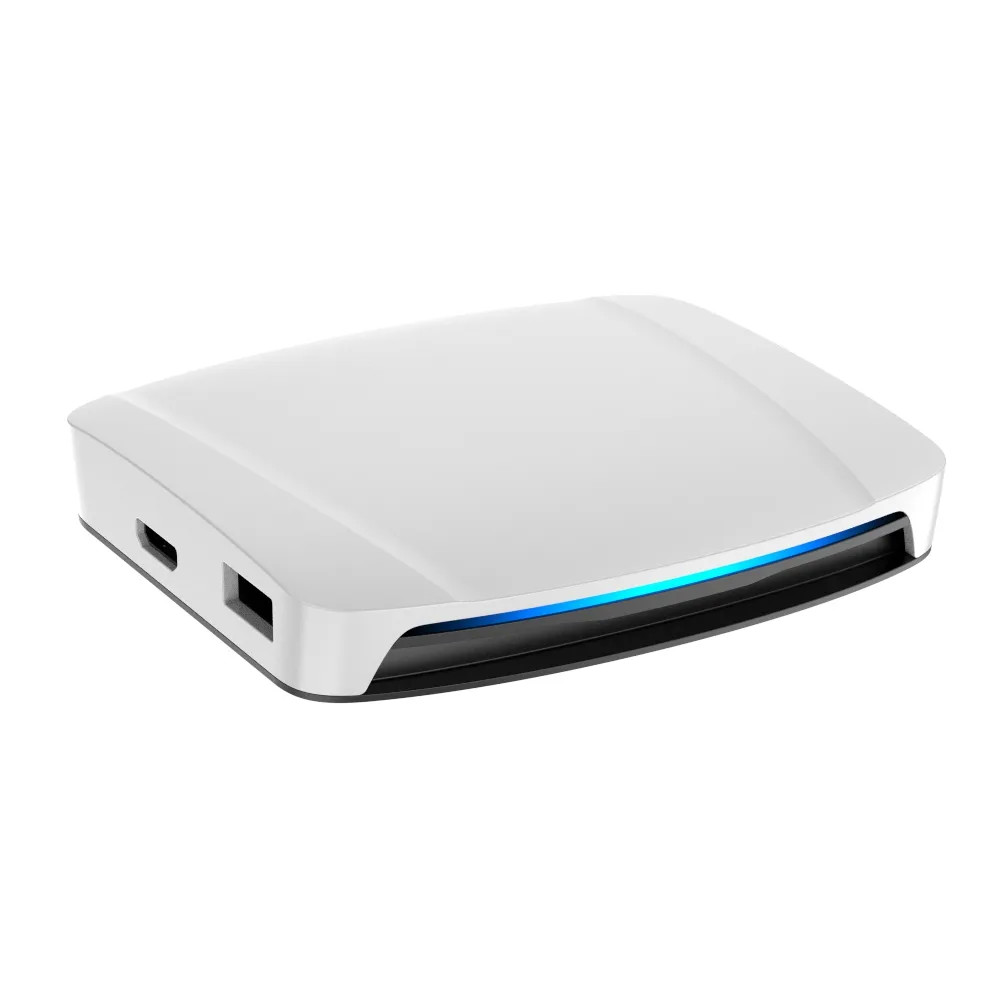

Tbox UHD Android 13 Wireless Adapter CarPlay Ai Box HDMI SM6225 Processor 4Gb USB HD Video For Youtube Tiktok

Product Features

Over-the-Air Update, touch control, original car knob, volume button control, GPS Navigation
Qualcomm SM6225 Processor, 4GB+64GB, 4G Cellular (SIM Card Slot), TF Card (up to 512GB)
Equipped with GPS/Glonass/Beidou, real-time traffic information
Dual Bluetooth, 5.8GHz WiFi, Siri/Google Assistant Voice Control
HDMI connection for HD image output to displays

Product Specifications

Model	CPC200-Tbox-UHD
CPU	Qualcomm's SM6225 Quad-core ARM Cortex-A73, Kryo 265 Gold @2.4GHz+Quad-core ARM Cortex-A53,Kryo 265 Silver @1.9GHz) 6 nm N6 process
GPU	Adreno 610
Memory	4GB LPDDR4 RAM+64GB UFS ROM
Support Extension	512GB
WiFi Module	WCN3980
MFI	MFI 3959
Operator Version	NA(North America)/EAU(Europe, Asia)/JP(Japan)
Communication Standard	LTD-FDD/LTE-TDD/WCDMA/GSM/EDGE
Global Positioning	GPS/GLONASS/BeiDou
Bluetooth frequency	5.0 BR/EDR/BLE
Power Input	5V+/-0.2V 2A
Power Consumption	6W
WiFi Frequency	802.11a/b/g/n/ac, 2.4G+5G
Material	ABS
Colour	White
The wireless CarPlay	iPhone 6 and above / iOS 10.0 and above
Wireless Android Auto	Android phone with Android 11.0 and above
Compatible Car	Car with factory wired CarPlay/wired Android Auto
Resolution	Adaptive (maintain the original protocol resolution)
Language	Multiple languages around the world, such as: Arabic, Chinese, English, French
Port	LED Light, Type-C Female Port, TF Card Slot, HDMI port
Date cable	USB-A to USB-C1 USB-C to USB-C1 L=300mm HDMI Adapter*1 L=170mm
Product Size	9084.917.1mm 3.543.340.67 inch
Package Dimensions	11010639mm
Product Weight	0.1034kg
Packing Gross Weight	0.244kg
Packing List	Packing Box* 1, Product 1, Data cable 2, HDMI Adapter 1, Product Manual 1,Ejection Pin *1

Conditions of Use

Car models with wired CarPlay or Android Auto

Projection playback: secondary/rear screen supports HDMI input

Wireless CarPlay: iOS10+, iPhone6+

Wireless Android Auto: Android 11.0+

Music and Auto Streaming

Supports music apps: Apple Music, Spotify, and Pandora

Stream favorite songs and playlists seamlessly

Lightning-fast 5G Wi-Fi wireless connection keeping music streaming

Plug-and-Play Setup

Plug & play design for easy installation & setup; no additional apps or software required

Connect the adapter to your car's USB port, pair with Phone via Bluetooth and Wi-Fi

Automatically connect to phone wirelessly when car starts for convenience

HDMI Cinema Mode

Transform car into a mobile theater with HDMI output capability

Feature brings kids' favorite cartoons & movies to the backseat, creating immersive entertainment experience during long drives

Supports high-definition video playback

Dual Channel Switching

Dual channel switching, enabling effortless transition between Carplay (default) and Android Auto modes

Switching modes via the TF card (requires file transfer) or using the pin port located at the bottom

Insert the card's pin and hold for approximately 3 seconds to switch modes, green light indicating Carplay mode

Why Choose Us

Professional

Complete industry chain covering research, production and sales with full product development capabilities

High Quality

Famous brand material suppliers, product certifications, and warranty coverage

Delivery on Time

High production capacity with excellent execution, delivering 10,000 units per month

After-Sales Service

Customer-oriented support with prompt feedback and quality problem resolution

Continuity

Extended product life cycle with continuous technology upgrades

Standardization

Complete certification and patent documentation with competitive pricing structure

Diversification

Multiple cooperation models including OEM, ODM, and sales agent partnerships

Tag:

Place of Origin:	China
Brand Name:	CarlinKit
Certification:	RoHs/FCC/CE/TELEC/NCC/SRRC
Model Number:	CPC200-TBox UHD(SM6225 64G)

Minimum Order Quantity:	1pcs
Packaging Details:	Gift carton 11010639mm
Delivery Time:	3-5 days
Supply Ability:	10,000 carton per month

CPU:	Qualcomm’s SM6225 Quad-core	GPU:	Adreno 610
ROM:	4GB LPDDR4 RAM+64GB UFS ROM	WIFI Frequency:	802.11a/b/g/n/ac, 2.4G+5G
Bluetooth Version:	5.0 BR/EDR/BLE	System:	Android 13
Highlight:	HDMI SM6225 Processor Tbox UHD , Android 13 CarPlay Tbox UHD , HD Video Android 13.0 Carplay AI Box
