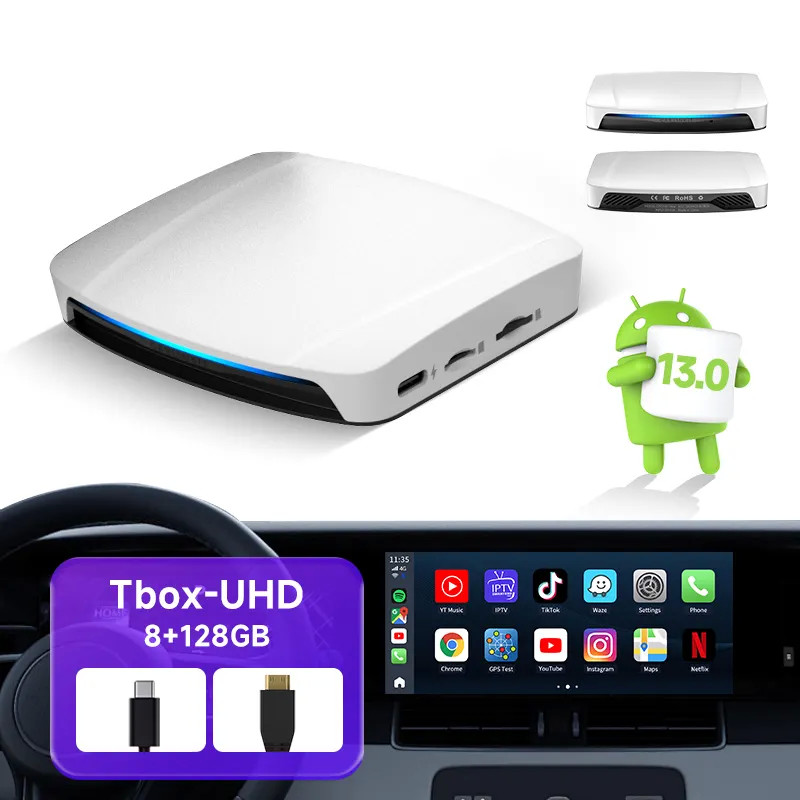

Carlinkit Tbox UHD TV Box Android 13 Wireless Adapter CarPlay AI Box SM6225 8Gb Adapter 4K HD Video Output

Product Features

Built-in Full Android 13.0 with Wireless Apple CarPlay and Android Auto
Qualcomm SM6225 Processor with 8GB RAM + 128GB storage (expandable to 512GB)
4G Cellular support with SIM Card Slot
HDMI connection for HD image output to displays
Split-screen display for seamless multitasking
Low power consumption design for energy efficiency

Product Specifications

Model	CPC200-Tbox-UHD
CPU	Qualcomm SM6225 Quad-core ARM Cortex-A73, Kryo 265 Gold @2.4GHz + Quad-core ARM Cortex-A53, Kryo 265 Silver @1.9GHz (6 nm N6 process)
GPU	Adreno 610
Memory	8GB LPDDR4 RAM + 128GB UFS ROM
Support Extension	Up to 512GB
WiFi Module	WCN3980
MFI	MFI 3959
Operator Version	NA (North America)/EAU (Europe, Asia)/JP (Japan)
Communication Standard	LTD-FDD/LTE-TDD/WCDMA/GSM/EDGE
Global Positioning	GPS/GLONASS/BeiDou
Bluetooth	5.0 BR/EDR/BLE
Power Input	5V+/-0.2V 2A
Power Consumption	6W
WiFi Frequency	802.11a/b/g/n/ac, 2.4G+5G
Material	ABS
Color	White
Wireless CarPlay	iPhone 6 and above / iOS 10.0 and above
Wireless Android Auto	Android phone with Android 11.0 and above
Compatible Cars	Car with factory wired CarPlay/wired Android Auto
Resolution	Adaptive (maintains original protocol resolution)
Language	Multiple global languages including Arabic, Chinese, English, French

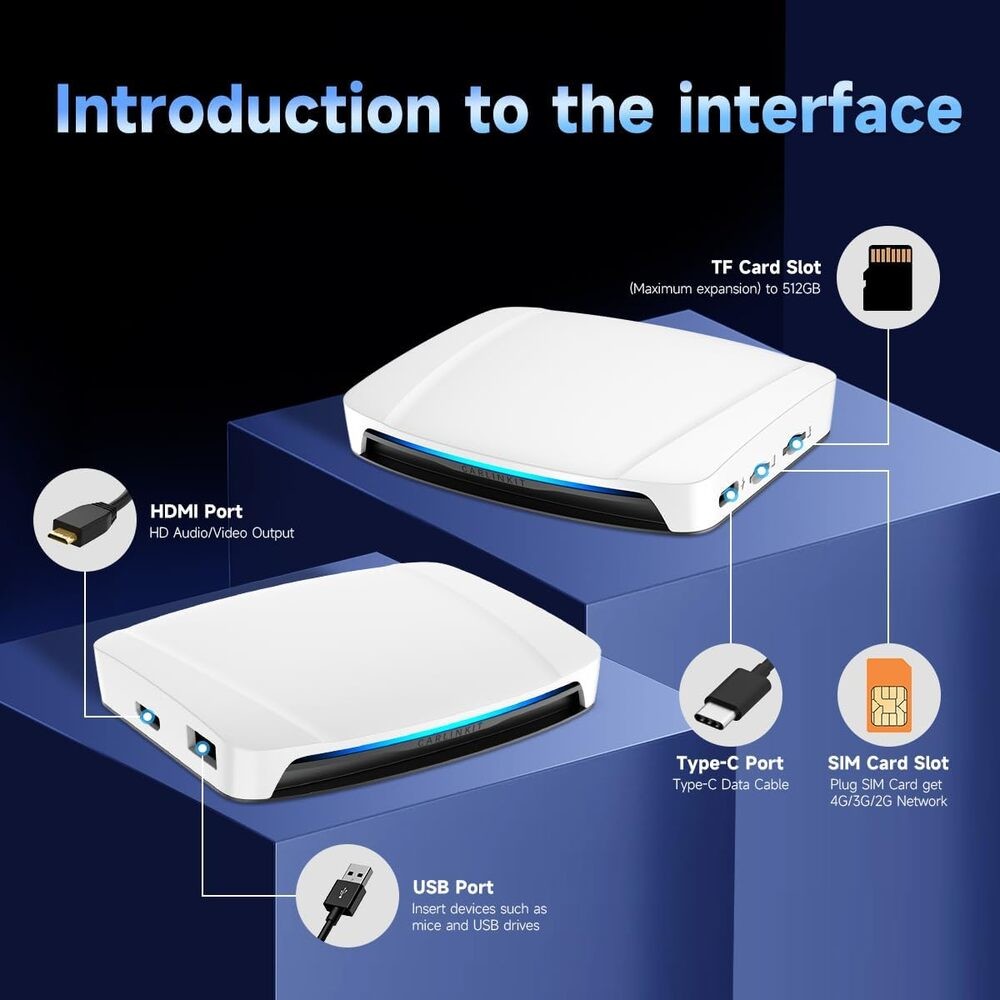

Ports	LED Light, Type-C Female Port, TF Card Slot, HDMI port
Included Cables	USB-A to USB-C1, USB-C to USB-C1 (L=300mm), HDMI Adapter*1 (L=170mm)
Product Size	9084.917.1mm (3.543.340.67 inch)
Package Dimensions	11010639mm
Product Weight	0.1034kg
Packing Gross Weight	0.244kg
Packing List	Packing Box1, Product1, Data cable2, HDMI Adapter1, Product Manual1, Ejection Pin1

Conditions of Use

Car models with wired CarPlay or Android Auto
Projection playback: secondary/rear screen supports HDMI input
Wireless CarPlay: iOS10+, iPhone6+
Wireless Android Auto: Android 11.0+

HDMI Cinema Mode

Ensures crisp and clear visuals on secondary screen. Simply connect device via HDMI and turn on the secondary screen to activate. Designed for passenger viewing only and not visible to the driver when vehicle is in motion.

Wide Compatibility

Compatible with car models with Android system 4.4+
Supports over 600+ car models covering most mainstream brands
iPhone 6 and above models, iOS 10 or above version
Android phone: supports Android 11.0 and above

High-Quality Audio and Video

Minimized delays for smooth audio and video playback
Supports high-resolution audio streaming for superior in-car entertainment
Seamless integration with Apple Music, Spotify, and Pandora

Dual Channel Switching

Enables effortless transition between Carplay (default) and Android Auto modes. Switching modes via the TF card (requires file transfer) or using the pin port located at the bottom. Insert the card's pin and hold for approximately 3 seconds to switch modes, with green light indicating Carplay mode.

Why Choose Carlinkit

Professional

Complete industry chain covering research, production and sales with comprehensive product development capabilities.

High Quality

Materials from famous brand suppliers with product certificates and warranty coverage.

Delivery on Time

High production capacity with excellent execution, delivering 10,000 units per month.

After-Sales Service

Customer-oriented approach with prompt feedback and responsibility for any quality issues.

Continuity

Extended product life cycle with continuous technology upgrades to ensure customer satisfaction.

Standardization

Complete certification and patent documentation with a structured pricing system to protect sales chain profits.

Diversification

Multiple cooperation models including OEM, ODM, and sales agent options with product development and mold design services.

Tag:

Place of Origin:	China
Brand Name:	AutolinKit
Certification:	RoHs/FCC/CE/TELEC/NCC/SRRC
Model Number:	CPC200-TBox UHD(SM6225 128G)

Minimum Order Quantity:	1pcs
Packaging Details:	Gift carton 11010639mm
Delivery Time:	3-5 days
Supply Ability:	10,000 carton per month

CPU:	Qualcomm SM6225 Quad-core	GPU:	Adren0 610
ROM:	8GB LPDDR4 RAM+128GB UFS ROM	WIFI Frequency:	802.11a/b/g/n/ac, 2.4G+5G
Bluetooth Version:	5.0 BR/EDR/BLE	System:	Android 13
Highlight:	4K HD Video Output Tbox UHD , Android 13 CarPlay Tbox UHD Device , Tbox UHD CarPlay TV Adapter
