Android 13 HDMI Output TBox UHD Wireless Adapter

CarPlay Android Auto AI Box SM6225 8G 128Gb Support YouTube Netflix

Product Features

CarPlay & Android Auto link to Android system multimedia
HDMI Output - Connect Everything Everywhere
Built-in Full Android 13.0 with Wireless Apple CarPlay and Wireless Android Auto
Dual Bluetooth, 5.8GHz WiFi, Siri/Google Assistant Voice Control
HDMI output projection to secondary/rear screen with separate control between screens

Product Specifications

Model	CPC200-Tbox-UHD
CPU	Qualcomm SM6225 Quad-core ARM Cortex-A73, Kryo 265 Gold @2.4GHz + Quad-core ARM Cortex-A53, Kryo 265 Silver @1.9GHz (6nm N6 process)
GPU	Adreno 610
Memory	8GB LPDDR4 RAM + 128GB UFS ROM (Supports extension up to 512GB)
WiFi Module	WCN3980
MFI	MFI 3959
Operator Version	NA (North America)/EAU (Europe, Asia)/JP (Japan)
Communication Standard	LTD-FDD/LTE-TDD/WCDMA/GSM/EDGE
Global Positioning	GPS/GLONASS/BeiDou
Bluetooth	5.0 BR/EDR/BLE
Power Input	5V+/-0.2V 2A
Power Consumption	6W
WiFi Frequency	802.11a/b/g/n/ac, 2.4G+5G
Material	ABS
Color	White
Wireless CarPlay	iPhone 6 and above / iOS 10.0 and above
Wireless Android Auto	Android phone with Android 11.0 and above
Compatible Cars	Cars with factory wired CarPlay/wired Android Auto
Resolution	Adaptive (maintains original protocol resolution)
Language	Multiple languages including Arabic, Chinese, English, French

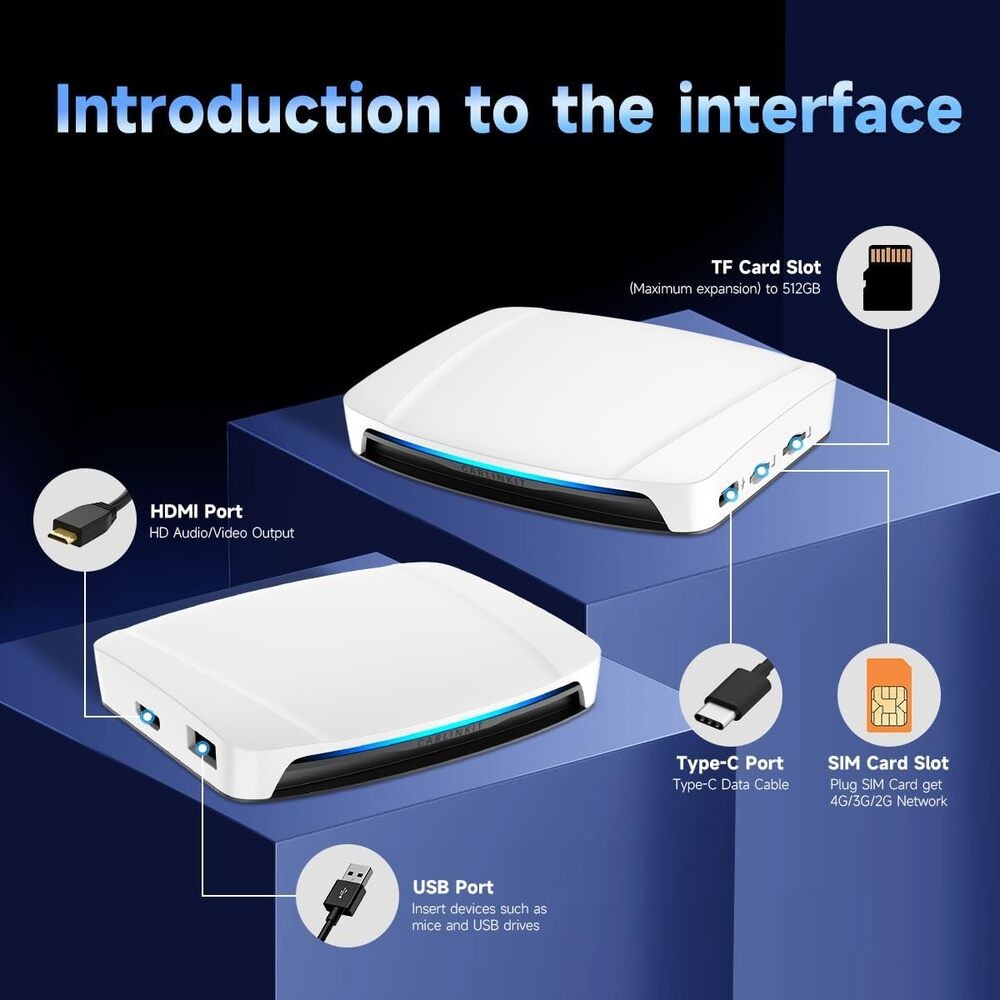

Ports	LED Light, Type-C Female Port, TF Card Slot, HDMI port
Data Cable	USB-A to USB-C1, USB-C to USB-C1 (L=300mm), HDMI Adapter*1 (L=170mm)
Product Size	9084.917.1mm (3.543.340.67 inch)
Package Dimensions	11010639mm
Product Weight	0.1034kg
Packing Gross Weight	0.244kg
Packing List	Packing Box1, Product1, Data cable2, HDMI Adapter1, Product Manual1, Ejection Pin1

Conditions of Use

Car models with wired CarPlay or Android Auto
Projection playback: secondary/rear screen supports HDMI input
Wireless CarPlay: iOS10+, iPhone6+
Wireless Android Auto: Android 11.0+

HDMI High Output

MiniHDMI interface provides high-definition video and audio transmission with excellent picture and sound quality. Supports split-screen switching display without interference.

Dual Channel Switching

Effortlessly transition between CarPlay (default) and Android Auto modes. Switching can be done via TF card (requires file transfer) or using the pin port at the bottom. Insert the card's pin and hold for approximately 3 seconds to switch modes (green light indicates CarPlay mode).

Quality Upgrade

8-core SM6225 64-bit processor with Qualcomm Snapdragon SM615 mobile platform. 6nm technology delivers powerful performance with smooth operation.

Multiple Satellite Navigation Systems

China Beidou + US GPS + Russia Glonass triple positioning system provides:

Real-time directions, traffic updates, and estimated arrival times
High-definition rendering technology to restore real road scenes
Sub-meter positioning accuracy to lane level

Why Choose Us

Professional

Complete industry chain covering research, production, and sales with full product development capabilities.

High Quality

Famous brand material suppliers with product certificates and warranty.

Delivery on Time

High output capacity of 10,000 units per month with excellent execution.

After-Sales Service

Customer-oriented with prompt feedback and responsibility for any quality issues.

Continuity

Extended product life cycle with continuous technology upgrades.

Standardization

Complete certification and patent documentation with established pricing system.

Diversification

OEM, ODM, and sales agent cooperation models with product development and mold design services.

Tag:

Place of Origin:	China
Brand Name:	CarlinKit
Certification:	RoHs/FCC/CE/TELEC/NCC/SRRC
Model Number:	CPC200-TBox UHD(SM6225 128G)

Minimum Order Quantity:	1pcs
Packaging Details:	Gift carton 11010639mm
Delivery Time:	3-5 days
Supply Ability:	10,000 carton per month

CPU:	Qualcomm SM6225 Quad-core	GPU:	Adreno 610
ROM:	8GB LPDDR4 RAM+128GB UFS ROM	WIFI Frequency:	802.11a/b/g/n/ac, 2.4G+5G
Bluetooth Version:	5.0 BR/EDR/BLE	System:	Android 13
Highlight:	TBox UHD Android Auto CarPlay AI Box , HDMI Output Android 13 CarPlay TBox UHD , Android 13 Carplay AI Box SM6225 8G 128Gb
