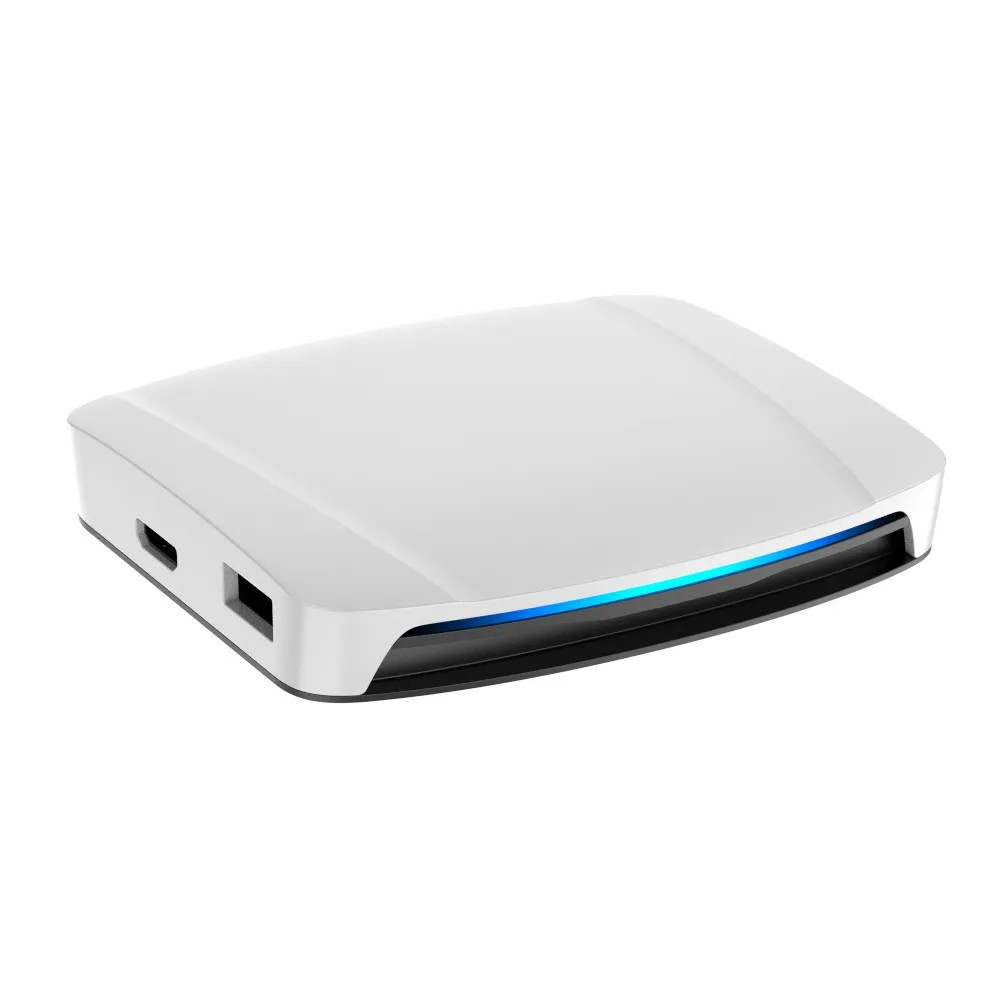

Wired to Wireless Adapter Carplay and Android Auto to Multi Media 4K HD Video Output Online Video FOTA UHD TV Box SDM660 4Gb

Product Features

Built-in Full Android 13.0 with Wireless Apple CarPlay and Wireless Android Auto
Powered by Qualcomm SDM660 Processor with 4GB RAM + 64GB storage (expandable to 512GB)
4G Cellular support with SIM Card Slot and TF Card expansion
HDMI connection for HD image output to displays
Split-screen display for seamless multitasking
Low power consumption design for energy efficiency

Product Specifications

Model	CPC200-Tbox-UHD
CPU	Qualcomm's SDM660 4 x Kryo Gold 2.2GHz+4 x Kryo Silver 1.8GHz
GPU	A512 650MHz
Memory	4GB LPDDR4 RAM+64GB UFS ROM
Support Extension	512GB
WiFi Module	WCN3980
MFI	MFI 3959
Operator Version	NA(North America)/EAU(Europe, Asia)/JP(Japan)
Communication Standard	LTD-FDD/LTE-TDD/WCDMA/GSM/EDGE
Global Positioning	GPS/GLONASS/BeiDou
Bluetooth frequency	5.0 BR/EDR/BLE
Power Input	5V+/-0.2V 2A
Power Consumption	6W
WiFi Frequency	802.11a/b/g/n/ac, 2.4G+5G
Material	ABS
Colour	White
Wireless CarPlay	iPhone 6 and above / iOS 10.0 and above
Wireless Android Auto	Android phone with Android 11.0 and above
Compatible Car	Car with factory wired CarPlay/wired Android Auto
Resolution	Adaptive (maintain the original protocol resolution)
Language	Multiple languages including Arabic, Chinese, English, French
Port	LED Light, Type-C Female Port, TF Card Slot, HDMI port, USB Female port
Date cable	USB-A to USB-C1 USB-C to USB-C1 L=300mm HDMI Adapter*1 L=170mm
Product Size	9084.917.1mm (3.543.340.67 inch)
Package Dimensions	11010639mm
Product Weight	0.1034kg
Packing Gross Weight	0.244kg
Packing List	Packing Box1, Product1, Data cable2, HDMI Adapter1, Product Manual1, Ejection Pin1

Conditions of Use

Compatible with car models featuring wired CarPlay or Android Auto
Projection playback: secondary/rear screen supports HDMI input
Wireless CarPlay requires iOS10+ and iPhone6+
Wireless Android Auto requires Android 11.0+

HDMI Cinema Mode

Ensures crisp and clear visuals on secondary screens. Simply connect via HDMI and activate the secondary screen. Designed exclusively for passenger viewing when vehicle is in motion.

Wide Compatibility

Compatible with car models featuring Android system 4.4+
Supports over 600+ car models covering most mainstream brands
iPhone 6 and above models with iOS 10 or later
Android phones supporting Android 11.0 and above

High-Quality Audio and Video

Minimized delays for smooth audio and video playback
Supports high-resolution audio streaming for superior in-car entertainment
Seamless integration with Apple Music, Spotify, and Pandora

Dual Channel Switching

Effortless transition between Carplay (default) and Android Auto modes
Switch modes via TF card (requires file transfer) or using the pin port
Insert card's pin and hold for approximately 3 seconds to switch modes
Green light indicates Carplay mode

Why Choose Our Product

Professional

Complete industry chain covering research, production, and sales with full product development capabilities.

High Quality

Manufactured with premium materials, certified products, and comprehensive warranties.

Delivery on Time

High production capacity of 10,000 units per month with excellent execution.

After-Sales Service

Customer-oriented support with prompt feedback and quality guarantees.

Continuity

Extended product life cycle with continuous technology upgrades.

Standardization

Complete certification and patent documentation with structured pricing.

Diversification

Multiple cooperation models including OEM, ODM, and sales agent options.

Tag:

Place of Origin:	China
Brand Name:	CarlinKit
Certification:	RoHs/FCC/CE/TELEC/NCC/SRRC
Model Number:	CPC200-TBox UHD(SDM660 64G)

Minimum Order Quantity:	1pcs
Packaging Details:	Gift carton 11010639mm
Delivery Time:	3-5 days
Supply Ability:	10,000 carton per month

CPU:	Qualcomm SDM660 Quad-core	GPU:	A512 650MHz
ROM:	4GB LPDDR4 RAM+64GB UFS ROM	WIFI Frequency:	802.11a/b/g/n/ac, 2.4G+5G
Bluetooth Version:	5.0 BR/EDR/BLE	System:	Android 13
Highlight:	Carplay and Andriod Auto to Multi Media , Carplay and Andriod Auto Ai Box , 4K HD Video Output UHD TV Box
