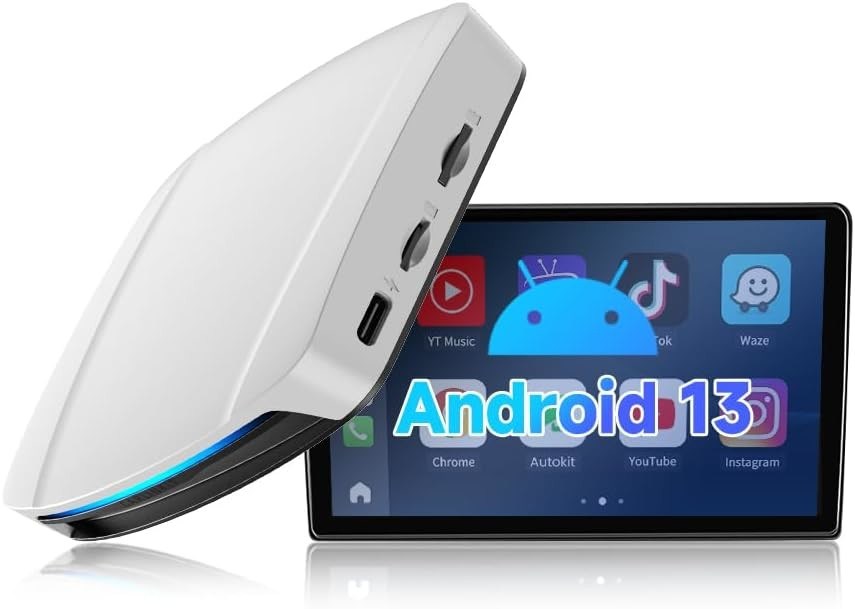

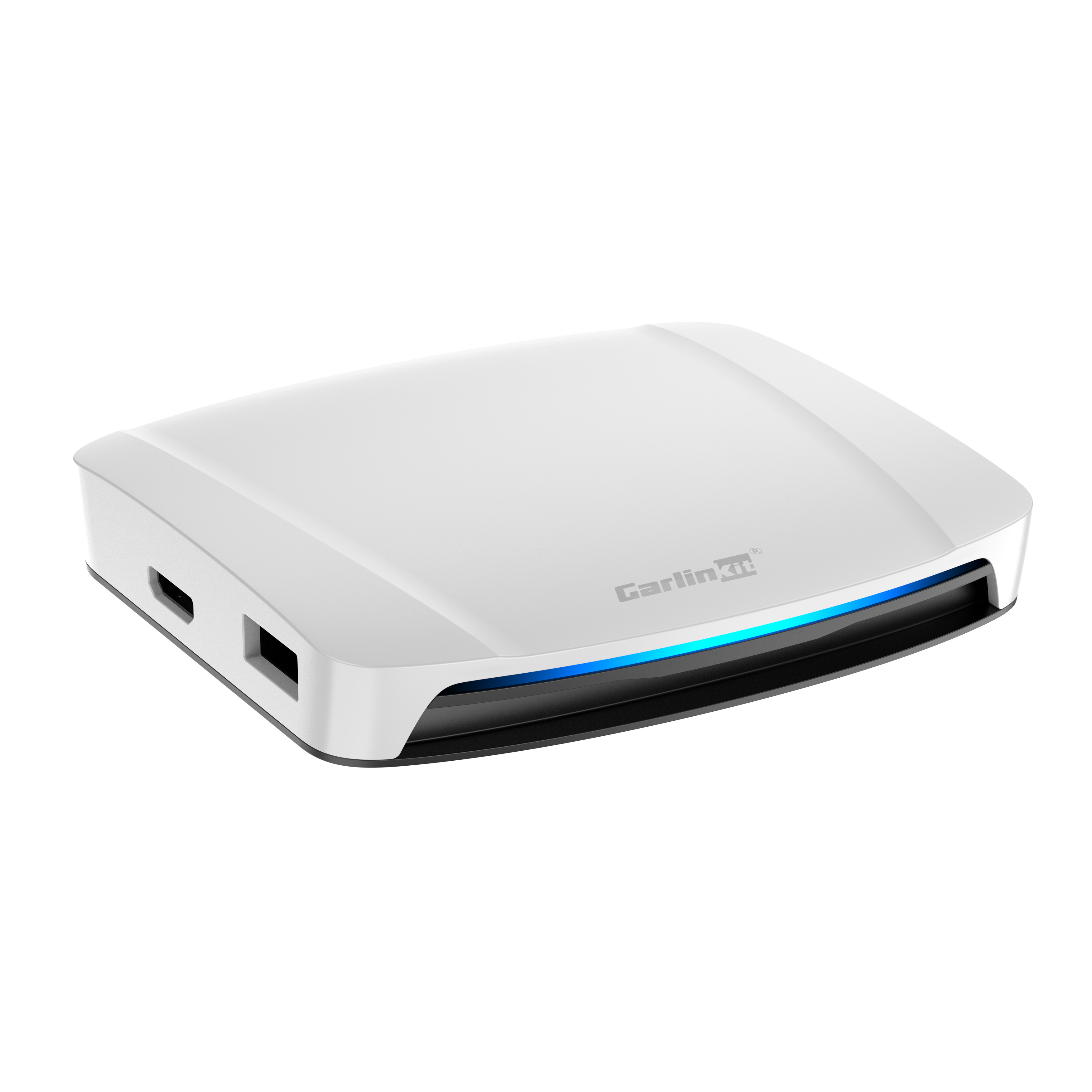

Android 13.0 Wireless Adapter CarPlay Multimedia Video Box CPC200-TBox UHD SDM660 8G 128Gb

Product Features

Carplay & Android Auto link to Android system Multimedia
HDMI Output Connect Everything Everywhere
Built-in Full Android 13.0, Wireless Apple CarPlay, Wireless Android Auto
Dual Bluetooth, 5.8GHz WiFi, Siri/Google Assistant Voice Control
HDMI output projection to secondary screen / rear screen, separate control between 2 screens

Product Specifications

Model	CPC200-Tbox-UHD
CPU	Qualcomm's SDM660 4 x Kryo Gold 2.2GHz+4 x Kryo Silver 1.8GHz
GPU	A512 650MHz
Memory	8GB LPDDR4 RAM+128GB UFS ROM
Support Extension	512GB
WiFi Module	WCN3980
MFI	MFI 3959
Operator Version	NA(North America)/EAU(Europe, Asia)/JP(Japan)
Communication Standard	LTD-FDD/LTE-TDD/WCDMA/GSM/EDGE
Global Positioning	GPS/GLONASS/BeiDou
Bluetooth frequency	5.0 BR/EDR/BLE
Power Input	5V+/-0.2V 2A
Power Consumption	6W
WiFi Frequency	802.11a/b/g/n/ac, 2.4G+5G
Material	ABS
Colour	White
The wireless CarPlay	iPhone 6 and above / iOS 10.0 and above
Wireless Android Auto	Android phone with Android 11.0 and above
Compatible Car	Car with factory wired CarPlay/wired Android Auto
Resolution	Adaptive (maintain the original protocol resolution)
Language	Multiple languages around the world, such as: Arabic, Chinese, English, French

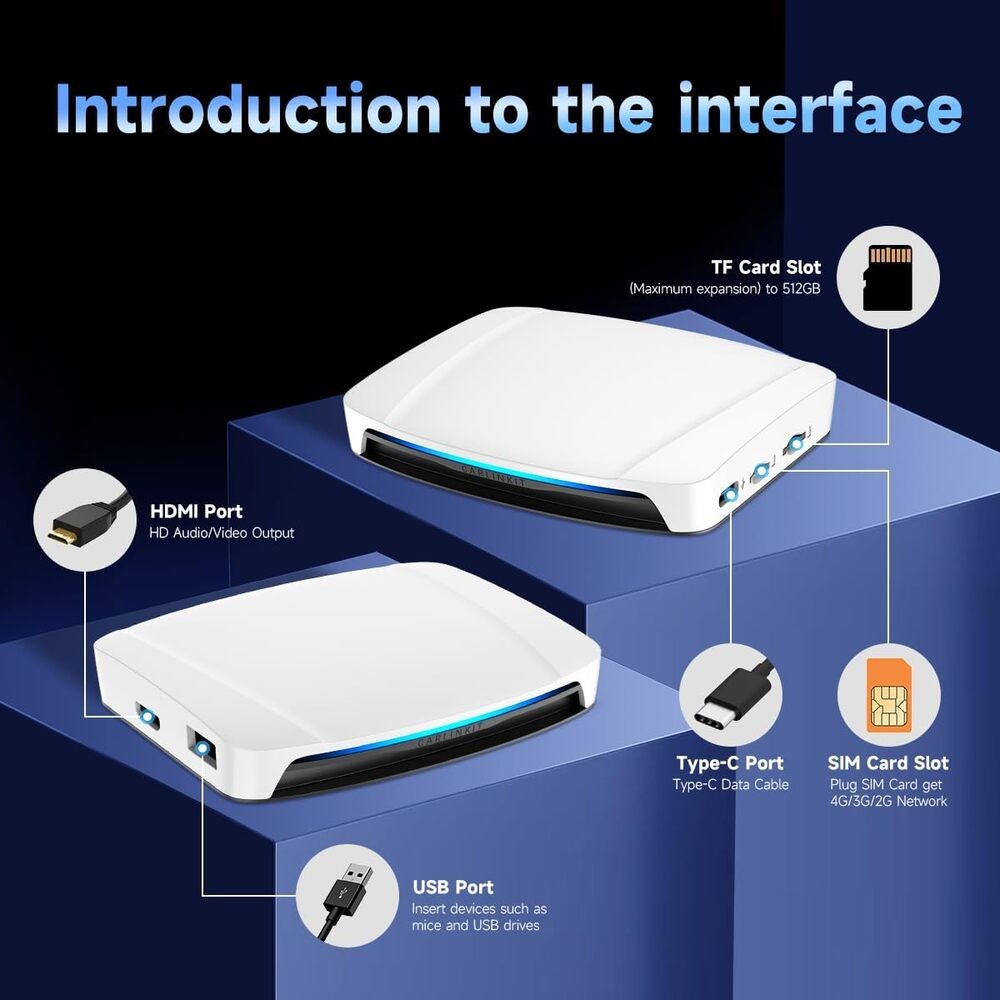

Port	LED Light, Type-C Female Port, TF Card Slot, HDMI port, USB Female port
Date cable	USB-A to USB-C1 USB-C to USB-C1 L=300mm HDMI Adapter*1 L=170mm
Product Size	9084.917.1mm 3.543.340.67 inch
Package Dimensions	11010639mm
Product Weight	0.1034kg
Packing Gross Weight	0.244kg
Packing List	Packing Box* 1, Product 1, Data cable 2, HDMI Adapter 1, Product Manual 1, Ejection Pin *1

Conditions of Use

Car models with wired CarPlay or Android Auto
Projection playback: secondary/rear screen supports HDMI input
Wireless CarPlay: iOS10+, iPhone6+
Wireless Android Auto: Android 11.0+

HDMI High Output

MiniHDMI interface, high-definition video and audio transmission, high-definition display picture, video and sound quality. Split-screen switching display, do not interfere with each other.

Dual Channel Switching

Dual channel switching, enabling effortless transition between Carplay (default) and Android Auto modes. Switching modes via the TF card (requires file transfer) or using the pin port located at the bottom. Insert the card's pin and hold for approximately 3 seconds to switch modes, green light indicating Carplay mode.

Quality Upgrade

8-core SDM 660-64-bit processor, Qualcomm Snapdragon SD660 mobile platform. 6nm technology, more powerful performance, running fast. Smooth operation and high performance.

Multiple Satellite Navigation Systems

China Beidou + US GPS + Russia Glonass, Triple positioning.

Real-time directions, traffic updates, and estimated arrival times
High-definition rendering technology to restore the real road scene
Sub-meter positioning accuracy to lane level

Why Choose Us

Professional: We have formed a whole industry chain of research, production and sales, covering product development, production and sales of the whole product chain.

High Quality: Famous brand material supplier, Certificates for product, Product warranty.

Delivery on Time: High output, Excellent executive ability, 10,000pcs per month.

After-Sales Service: Customer oriented, Prompt feedback, Responsible for any quality problem.

Continuity: Higher product life cycle to ensure customer return orders, and provide continuous product technology upgrades.

Standardization: Provide complete certification and patent certificate, have a perfect price system to ensure the profit of the sales chain.

Diversification: We provide OEM, ODM, sales agent a variety of cooperation models, provide product development and mold design production.

Tag:

Place of Origin:	China
Brand Name:	CarlinKit
Certification:	RoHs/FCC/CE/TELEC/NCC/SRRC
Model Number:	CPC200-TBox UHD(SDM660 128G)

Minimum Order Quantity:	1pcs
Packaging Details:	Gift carton 11010639mm
Delivery Time:	3-5 days
Supply Ability:	10,000 carton per month

CPU:	Qualcomm SDM660 Quad-core	GPU:	A512 650MHz
ROM:	8GB LPDDR4 RAM+128GB UFS ROM	WIFI Frequency:	802.11a/b/g/n/ac, 2.4G+5G
Bluetooth Version:	5.0 BR/EDR/BLE	System:	Android 13
Highlight:	Android 13.0 Wireless Adapter CarPlay Adaper , Wireless Adapter CarPlay Adaper UHD , Adapter CarPlay Adaper Multimedia
